STM32CubeIDE HAL API

GPIO​

  • Set GPIO
HAL_GPIO_Write(GPIOE, GPIO_PIN_0, GPIO_SET);
  • Clear GPIO
HAL_GPIO_Write(GPIOE, GPIO_PIN_0, GPIO_RESET);
  • Toggle GPIO
HAL_GPIO_TogglePin(GPIOE, GPIO_PIN_0);

Delay​

HAL_Delay(100); // time in ms

UART​

UART Setup

Blocking Mode​

  • With sprintf
#include <stdio.h>

char buffer[100] = {0};
uint32_t len = sprintf(buffer, "Value = %d\r\n", 10);
HAL_UART_Transmit(&huart1, (uint8_t*) buffer, len, HAL_MAX_DELAY);
#include <stdio.h>
#include <errno.h>

int _write(int fd, char* ptr, int len) {
  HAL_StatusTypeDef hstatus;

  if (fd == 0 || fd == 1) {
    hstatus = HAL_UART_Transmit(&huart2, (uint8_t *) ptr, len, HAL_MAX_DELAY);
    if (hstatus == HAL_OK)
      return len;
    else
      return EIO;
  }
  errno = EBADF;
  return -1;
}

setvbuf(stdout, NULL, _IONBF, 0);
printf("Value = %d\r\n", 10);
  • To enable Floating Point Support right click the project in the project tree -> Properties -> C/C++ Build -> Settings -> `MCU Settings -> Use float with printf from newlib-nano (-u _printf_float).

Interrupt Mode​

uint8_t transmit_buffer[10];

void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart) {
    if (huart->Instance == UART1) {
  }
}

HAL_UART_Receive_IT(&huart1, transmit_buffer,
    sizeof(transmit_buffer));

DMA Mode​

uint8_t receive_buffer[10];
uint8_t transmit_buffer[10];

void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart) {
  if (huart->Instance == UART1) {
    HAL_UART_Receive_DMA(huart, receive_buffer,
            sizeof(receive_buffer));
  }
}

void HAL_UART_TxCpltCallback(UART_HandleTypeDef *huart) {
}

void HAL_UART_ErrorCallback(UART_HandleTypeDef *huart) {
}

HAL_UART_Receive_DMA(&huart1, transmit_buffer,
    sizeof(transmit_buffer));

USB CDC Mode​

#include "usbd_cdc_if.h"

char buffer[50] = {0};
uint32_t tick = HAL_GetTick();
uint16_t size = sprintf(buffer, "%08d %08d Hello World\r\n", (int)tick, (int)tick - prev_tick);
CDC_Transmit_FS((uint8_t*) buffer, size);

Change Mode​

  • Enable Receive Mode:
huart->Instance->CR1 |= UART_MODE_RX;
  • Disable Receive Mode
huart->Instance->CR1 &= ~UART_MODE_RX;

Plotting Serial Data​

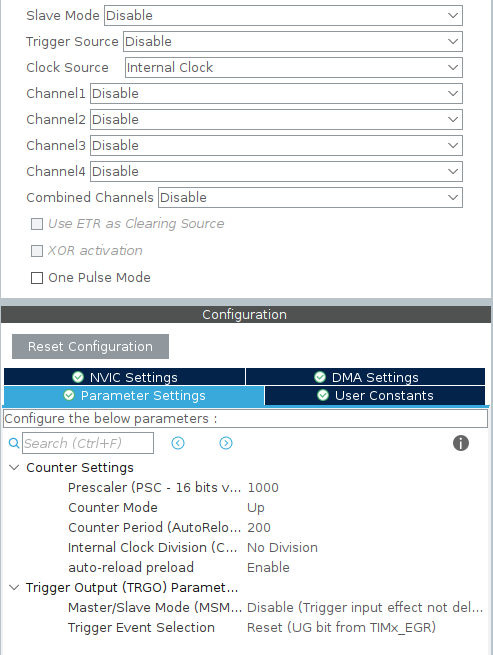

Timer​

void HAL_TIM_PeriodElapsedCallback(TIM_HandleTypeDef *htim) {
}

HAL_TIM_Base_Start_IT(&htim2);

Quadrature Encoder Mode​

HAL_TIM_Encoder_Start(&htim1, TIM_CHANNEL_ALL);

counter1 = __HAL_TIM_GET_COUNTER(&htim1);

Or Interrupt Mode:

void HAL_TIM_IC_CaptureCallback(TIM_HandleTypeDef *htim) {
    counter = __HAL_TIM_GET_COUNTER(htim);
}

HAL_TIM_Encoder_Start(&htim1, TIM_CHANNEL_ALL);

PWM Mode​

  • TIM_CLK = timer clock input
  • PSC = 16-bit prescaler register
  • ARR = 16/32-bit Autoreload register
void set_pwm(uint16_t value) {
    TIM_OC_InitTypeDef sConfigOC;
    sConfigOC.OCMode = TIM_OCMODE_PWM1;
    sConfigOC.Pulse = value;
    sConfigOC.OCPolarity = TIM_OCPOLARITY_HIGH;
    sConfigOC.OCFastMode = TIM_OCFAST_DISABLE;
    HAL_TIM_PWM_ConfigChannel(&htim4, &sConfigOC, TIM_CHANNEL_1);
    HAL_TIM_PWM_Start(&htim4, TIM_CHANNEL_1);
}

HAL_TIM_PWM_Start(&htim5, TIM_CHANNEL_1)

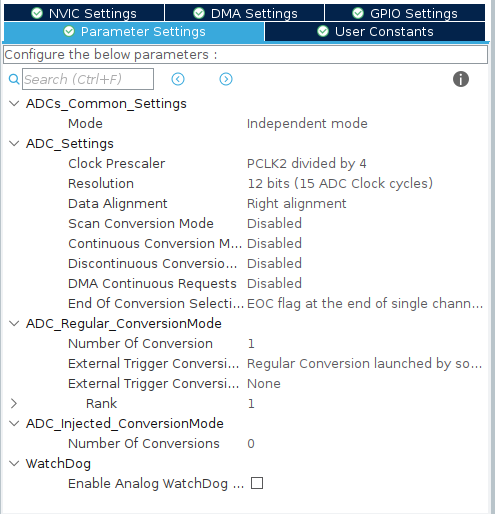

ADC​

Blocking Mode​

HAL_ADC_Start(&hadc1);
HAL_StatusTypeDef status = HAL_ADC_PollForConversion(&hadc1, 1); // Timeout in ms
uint32_t value = HAL_ADC_GetValue(&hadc1);
