Circuits

Microcontroller

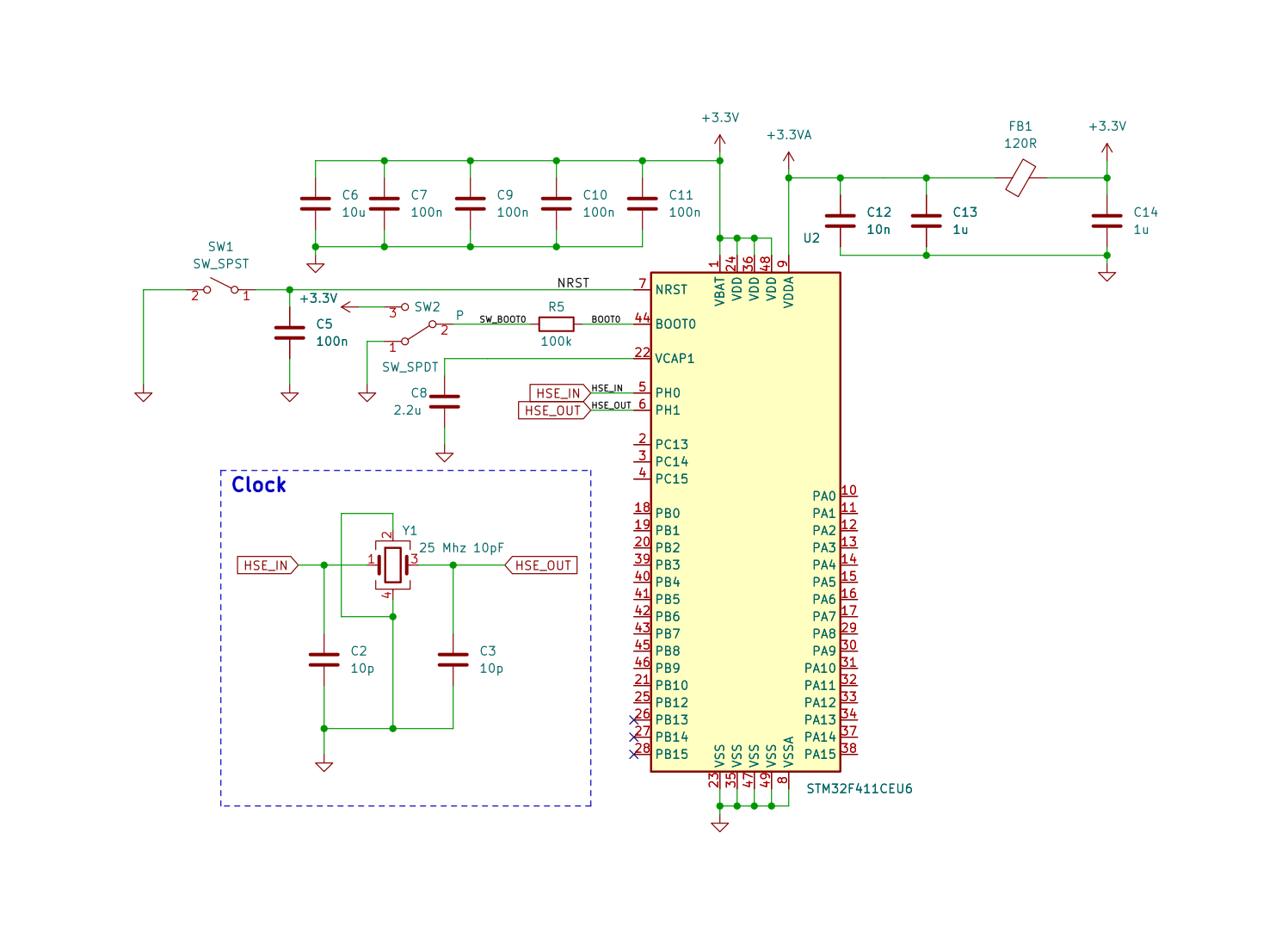

STM32F411CEU6

Designator	Value	Footprint	Name	#JLCPB	Price $
C{5,7,9,10,11}	100n	Capacitor_SMD:C_0402_1005Metric	CL05B104KO5NNNC	C1525	0.0010
C12	10n	Capacitor_SMD:C_0402_1005Metric	CL05B103KB5NNNC	C15195	0.0009
C13,C14	1µ	Capacitor_SMD:C_0402_1005Metric	CL05A105KA5NQNC	C52923	0.0030
C2,C3	10p	Capacitor_SMD:C_0402_1005Metric	CL05C100JB5NNNC	C32949	0.0053
C6	10µ	Capacitor_SMD:C_0603_1608Metric	CL10A106MA8NRNC	C96446	0.0442
C8	2.2µ	Capacitor_SMD:C_0805_2012Metric	0805F225M500NT	C49217	0.0153
FB1	120R	Inductor_SMD:L_0603_1608Metric	CBM160808U121T	C62708	0.0036
R5	100k	Resistor_SMD:R_0402_1005Metric	0402WGF1003TCE	C25741	0.0005
SW1	SW_SPST	Button_Switch_SMD:SW_SPST_B3U-1000P	B3U-1000P	C231329	0.2955
SW2	SW_SPDT	Button_Switch_SMD:SW_SPDT_PCM12	PCM12SMTR	C221841	0.4140
U2	STM32F411CEU6	Package_DFN_QFN:QFN-48-1EP_7x7mm_P0.5mm_EP5.6x5.6mm	STM32F411CEU6	C60420	4.4670
Y1	25Mhz10pF	Crystal:Crystal_SMD_3225-4Pin_3.2x2.5mm	X322525MMB4SI	C70582	0.0774

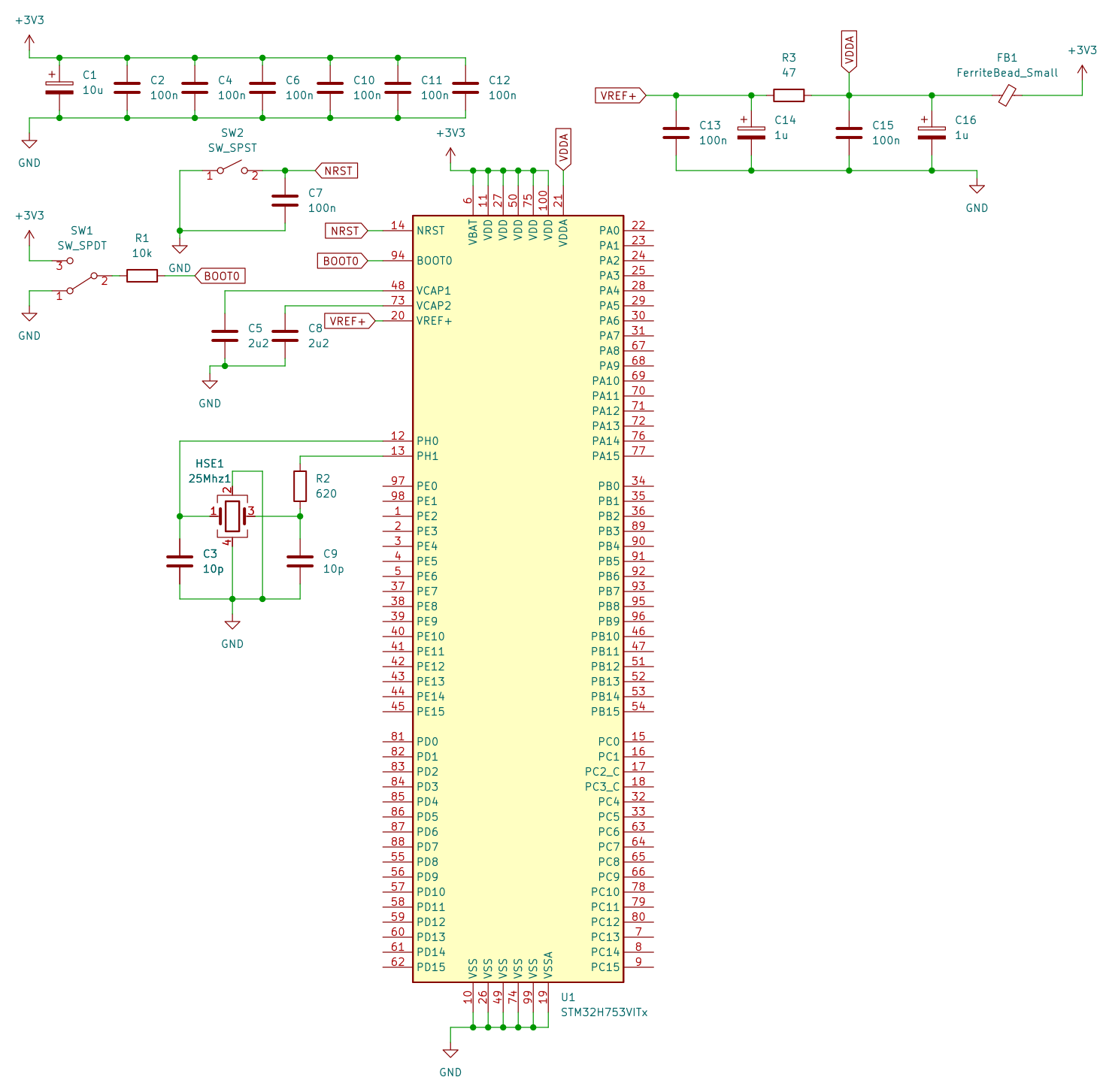

STM32H753VITx

Designator	Value	Footprint	Name	#JLCPB	Price $
U1	STM32H753VITx	Package_DFN_QFN:QFN-48-1EP_7x7mm_P0.5mm_EP5.6x5.6mm	STM32F411CEU6	C60420	4.4670

Voltage Regulator

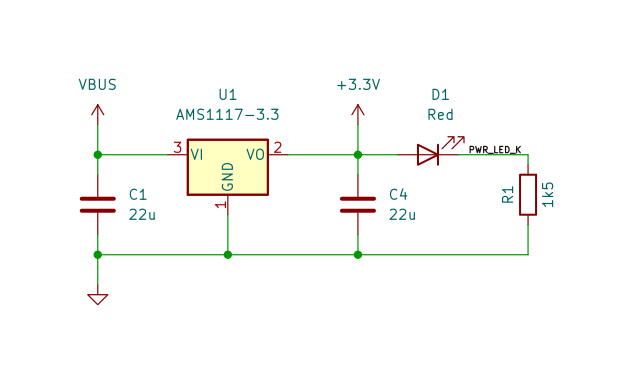

AMS1117 (3.3V)

Designator	Value	Footprint	Name	#JLCPB	Price $
C1,C4	22µ	Capacitor_SMD_C_0805_2012Metric	CL21A226MQQNNNE	C5674	0.0131
D1	Red	LED_SMD:LED_0603_1608Metric	KT-0603R	C2286	0.0048
R1	1k5	Resistor_SMD:R_0402_1005Metric	0402WGF1501TCE	C25867	0.0004
U1	AMS1117-3.3	Package_TO_SOT_SMD:SOT-223-3_TabPin2	AMS1117-3.3	C6186	0.1371

Interfaces

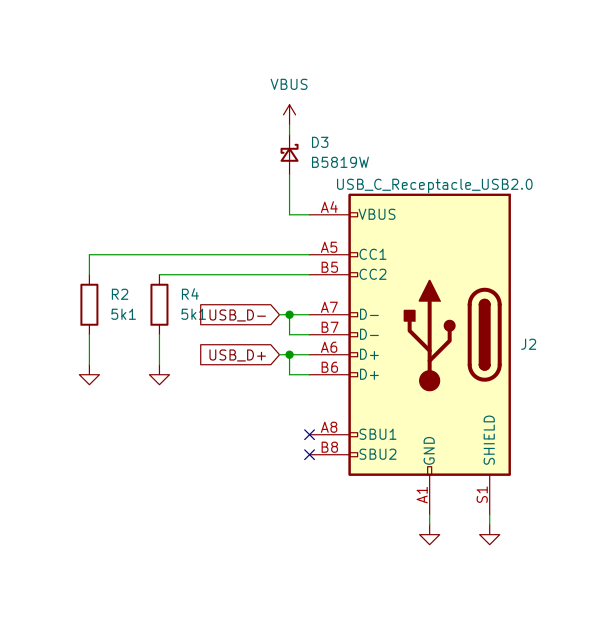

USB Receptacle USB 2.0

Designator	Value	Footprint	Name	#JLCPB	Price $
D3	B5819W	Diode_SMD:D_SOD-123	B5819W SL	C8598	0.0287
J2		Connector_USB:USB_C_Receptacle_HRO_TYPE-C-31-M-12	TYPE-C-31-M-12	C165948	0.2145
R2,R4	5k1	Resistor_SMD:R_0402_1005Metric	0402WGF5101TCE	C25905	0.0005

Motor Driver

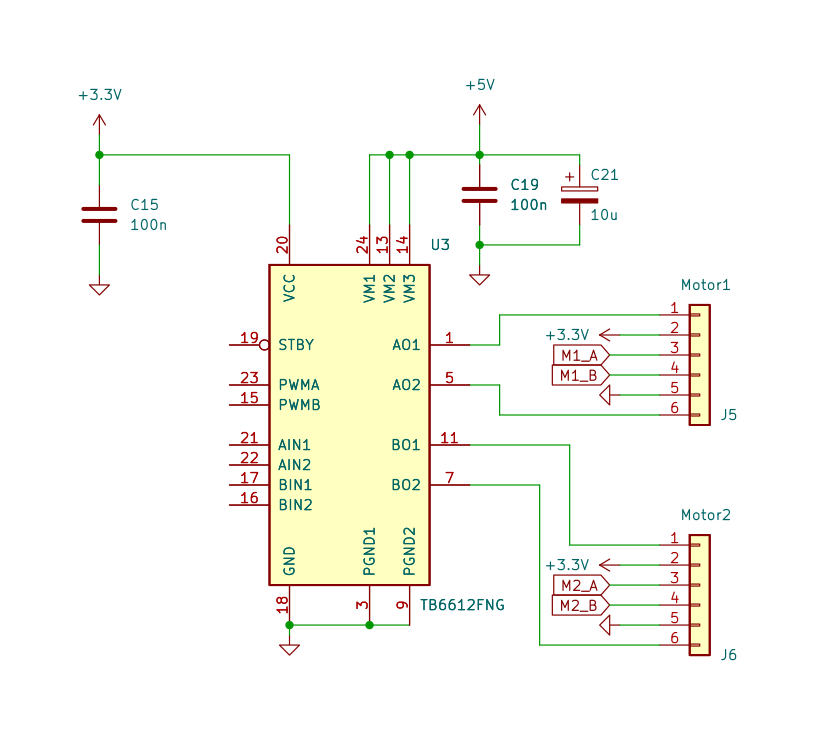

TB6612FNG

Designator	Value	Footprint	Name	#JLCPB	Price $
C15,C19	100n	Capacitor_SMD:C0402_1005Metric	CL05B104KO5NNNC	C1525	0.0010
C21	10µ	Capacitor_Tantalum_SMD:CP_EIA-3528-12_Kernet-T	TAJB106K020RNJ	C8017	0.0726
U3	TB6612FNG	Package_SO:SS0P-24_5.3x8.2mm_P0.65mm	TB6612FNG(O,C,8,EL	C88224	2.7960

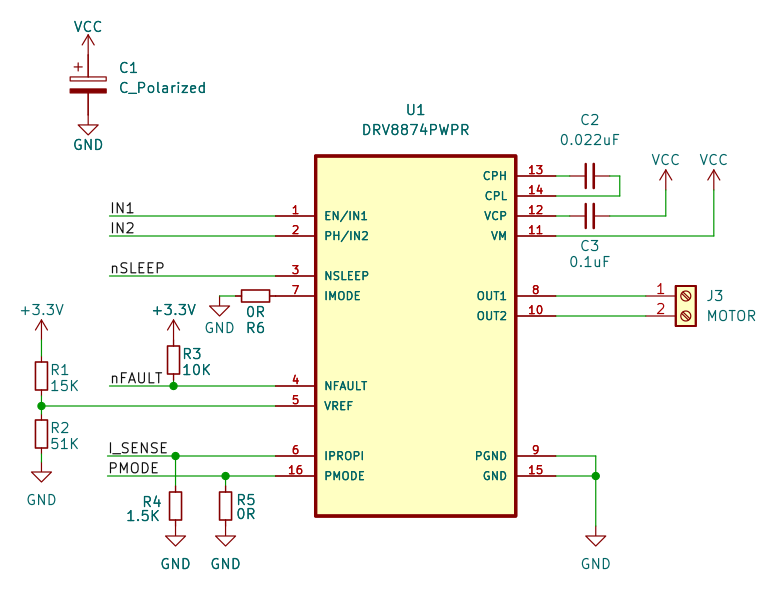

DRV8874PWPR
