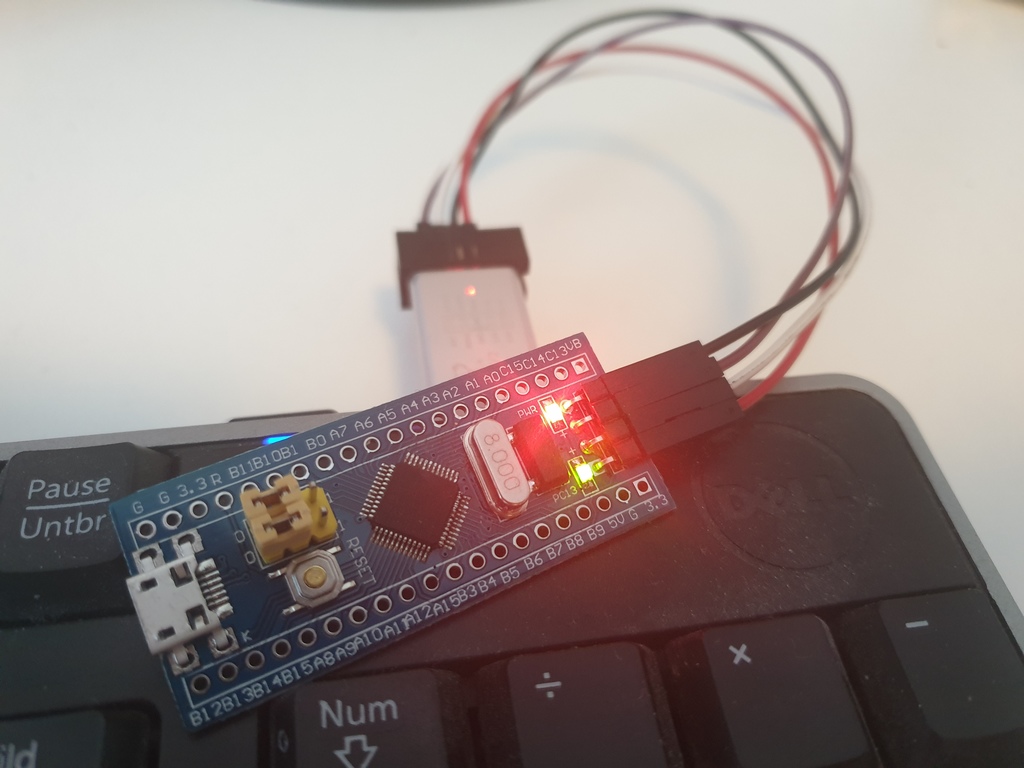

STM32F103C8T6 Dev Board

Pinout

Install

1. Open VSCode Extension Manager
2. Search for official PlatformIO IDE extension
3. Install PlatformIO IDE
4. PIO Home -> New Project
5. Board: BlackPill F103C8, Framework: libOpenCM3

Use

Blinky

OpenCM3

#include <libopencm3/stm32/rcc.h>
#include <libopencm3/stm32/gpio.h>

// Setup
rcc_periph_clock_enable(RCC_GPIOC);
gpio_set_mode(GPIOC, GPIO_MODE_OUTPUT_2_MHZ,
    GPIO_CNF_OUTPUT_PUSHPULL, GPIO13);

// Main Loop
while(1) {
    gpio_clear(GPIOC, GPIO13);
    for (int i = 0; i < 100000; i++) {
        __asm__("nop");
    }
    gpio_set(GPIOC, GPIO13);
    for (int i = 0; i < 100000; i++) {
        __asm__("nop");
    }
}

RTOS

#include "FreeRTOS.h"
#include "task.h"

#include <libopencm3/stm32/rcc.h>
#include <libopencm3/stm32/gpio.h>

extern void vApplicationStackOverflowHook(xTaskHandle *pxTask, signed portCHAR *pcTaskName);
void vApplicationStackOverflowHook(
    xTaskHandle *pxTask __attribute__((unused)),
    signed portCHAR *pcTaskName __attribute__((unused))) {
    for (;;);
}

static void task1(void *args __attribute__((unused))) {
    for (;;) {
        gpio_toggle(GPIOC, GPIO13);
        vTaskDelay(pdMS_TO_TICKS(1000));
    }
}

int main(void) {
    // Use External crystal
    rcc_clock_setup_in_hse_8mhz_out_72mhz();
    rcc_periph_clock_enable(RCC_GPIOC);
    gpio_set_mode(
        GPIOC,
        GPIO_MODE_OUTPUT_2_MHZ,
        GPIO_CNF_OUTPUT_PUSHPULL,
        GPIO13);

    // Turn LED off
    gpio_set(GPIOC, GPIO13);
    xTaskCreate(task1, "LED", 100, NULL, 2, NULL);
    vTaskStartScheduler();

    for (;;);
    return 0;
}

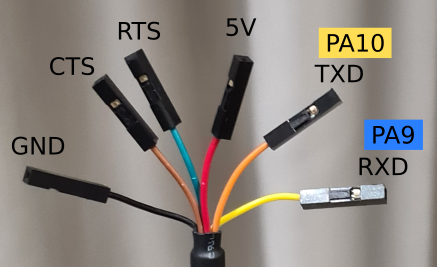

UART

OpenCM3

#include <cstdlib>
#include <cstring>
#include <cstdarg>
#include <cstdio>

#include <libopencm3/stm32/usart.h>

// Setup
rcc_clock_setup_in_hse_8mhz_out_72mhz();
rcc_periph_clock_enable(RCC_GPIOA);
rcc_periph_clock_enable(RCC_USART1);
gpio_set_mode(GPIOA,
    GPIO_MODE_OUTPUT_50_MHZ,
    GPIO_CNF_OUTPUT_ALTFN_PUSHPULL,
    GPIO_USART1_TX);
usart_set_baudrate(USART1, 115200);
usart_set_databits(USART1, 8);
usart_set_stopbits(USART1, USART_STOPBITS_1);
usart_set_mode(USART1, USART_MODE_TX);
usart_set_parity(USART1, USART_PARITY_NONE);
usart_set_flow_control(USART1, USART_FLOWCONTROL_NONE);
usart_enable(USART1);

// Send String
void puts(char *s) {
  while (*s != '\0') {
    usart_send_blocking(USART1, *s++);
  }
}
void myprintf(const char *fmt, ...) {
  static char buffer[256];

  va_list args;
  va_start(args, fmt);
  vsnprintf(buffer, sizeof(buffer), fmt, args);
  va_end(args);

  puts(buffer);
}

myprintf("Hello World!\n");

See the output using minicom.

minicom -c -b 115200 -D /dev/ttyUSB0

RTOS

static QueueHandle_t uart_txq;

void setup_uart() {
    rcc_periph_clock_enable(RCC_GPIOA);
    rcc_periph_clock_enable(RCC_USART1);

    gpio_set_mode(GPIOA,
        GPIO_MODE_OUTPUT_50_MHZ,
        GPIO_CNF_OUTPUT_ALTFN_PUSHPULL,
        GPIO_USART1_TX);

    usart_set_baudrate(USART1, 38400);
    usart_set_databits(USART1, 8);
    usart_set_stopbits(USART1, USART_STOPBITS_1);
    usart_set_mode(USART1, USART_MODE_TX);
    usart_set_parity(USART1, USART_PARITY_NONE);
    usart_set_flow_control(USART1, USART_FLOWCONTROL_NONE);
    usart_enable(USART1);

    uart_txq = xQueueCreate(256, sizeof(char));
}

void uart_publisher_task(void *args __attribute__((unused))) {
    int c = '0' - 1;
    for (;;) {
        vTaskDelay(pdMS_TO_TICKS(1000));
        usart_puts("Hello World!\n\r");
    }
}

void uart_sender_task(void *args __attribute__((unused))) {
    char c;
    for (;;) {
        if (xQueueReceive(uart_txq, &c, 500) == pdPASS) {
            // Transmit data buffer empty?
            while(!usart_get_flag(USART1, USART_SR_TXE)) {
                taskYIELD();
            }
            usart_send(USART1, c);
        }
    }
}

void usart_puts(const char* s) {
    for(;*s;++s) {
        xQueueSend(uart_txq, s, portMAX_DELAY);
    }
}

See the output using minicom.

minicom -c -b 115200 -D /dev/ttyUSB0

GPIO Input

#include <libopencm3/stm32/rcc.h>
#include <libopencm3/stm32/gpio.h>
// [...]
rcc_periph_clock_enable(RCC_GPIOC);
gpio_set_mode(
    GPIOC,
    GPIO_MODE_INPUT,
    GPIO_CNF_INPUT_ANALOG, /* GPIO_CNF_INPUT_FLOAT | GPIO_INPUT_PULL_UPDOWN  */
    GPIO13
);
// [...]
uint16_t gpio_get(uint32_t gpioport, uint16_t gpios);
uint16_t gpio_port_read(uint32_t gpioport);

GPIO Output

#include <libopencm3/stm32/rcc.h>
#include <libopencm3/stm32/gpio.h>
// [...]
rcc_periph_clock_enable(RCC_GPIOC);
gpio_set_mode(
    GPIOC,
    GPIO_MODE_OUTPUT_2_MHZ, /* GPIO_MODE_OUTPUT_10_MHZ | GPIO_MODE_OUTPUT_50_MHZ */
    GPIO_CNF_OUTPUT_PUSHPULL, /* GPIO_CNF_OUTPUT_OPENDRAIN */
    GPIO13
);
// [...]
void gpio_set(uint32_t gpioport, uint16_t gpios);
void gpio_clear(uint32_t gpioport, uint16_t gpios);
void gpio_toggle(uint32_t gpioport, uint16_t gpios);
void gpio_port_write(uint32_t gpioport, uint16_t data);

I2C

#include <libopencm3/stm32/i2c.h>

i2c_peripheral_disable(I2C1);
i2c_reset(I2C1);
I2C_CR1(I2C1) &= ~I2C_CR1_STOP;
i2c_set_standard_mode(I2C1);  // 100 khz
i2c_set_clock_frequency(I2C1, I2C_CR2_FREQ_36MHZ);
i2c_set_trise(I2C1, 36);
i2c_set_dutycycle(I2C1, I2C_CCR_DUTY_DIV2);
i2c_set_ccr(I2C1, 180);
i2c_set_own_7bit_slave_address(I2C1, 0x23);
i2c_peripheral_enable(I2C1);

uint8_t SLAVE_ADDRESS = 0x1E;

// Write
uint8_t write[2] {0x00, 0x70};
i2c_transfer7(I2C1, SLAVE_ADDRESS, write, 2, nullptr, 0);

// Write and read
uint8_t write[1] {0x03};
uint8_t read[6]{};
i2c_transfer7(I2C1, SLAVE_ADDRESS, write, 1, read, 6);

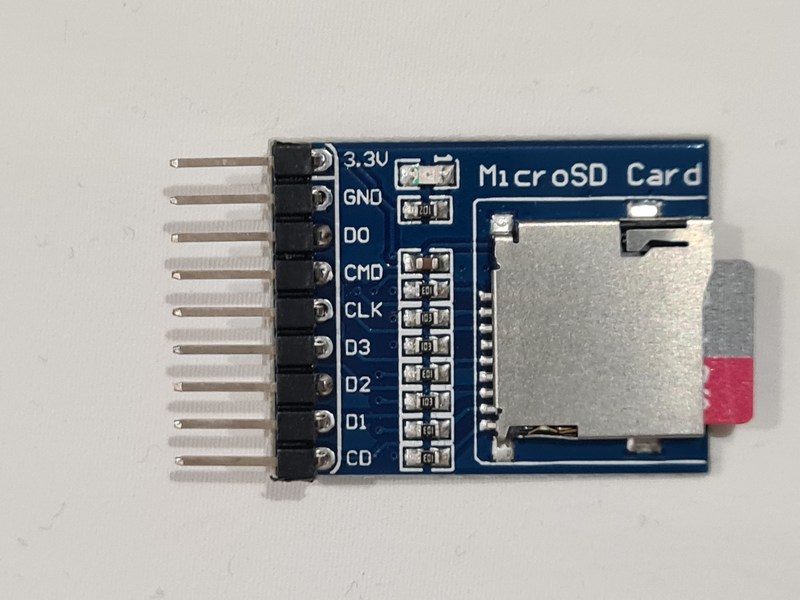

SD Card

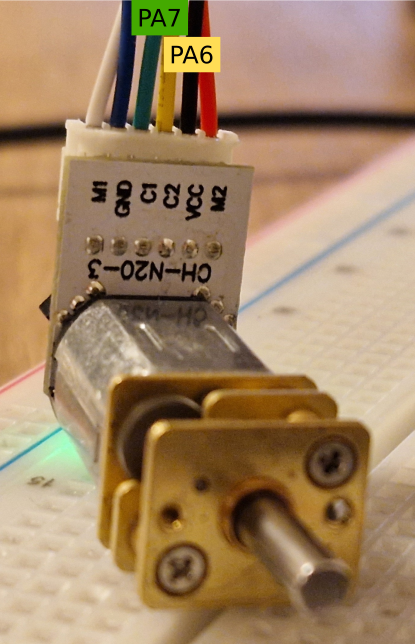

Encoder

Setup

#include <libopencm3/stm32/rcc.h>
#include <libopencm3/stm32/timer.h>

rcc_periph_clock_enable(RCC_TIM3);
timer_slave_set_mode(TIM3, 0x3); // encoder
timer_ic_set_input(TIM3, TIM_IC1, TIM_IC_IN_TI1);
timer_ic_set_input(TIM3, TIM_IC2, TIM_IC_IN_TI2);
timer_enable_counter(TIM3);

Get Counter Value

uint32_t motor_pos = timer_get_counter(TIM3);

Source

• Beginning STM32 Developing with FreeRTOS, libopencv3 and GCC by Warren Gay
• Blinky platformIO/libopencm3/freertos
